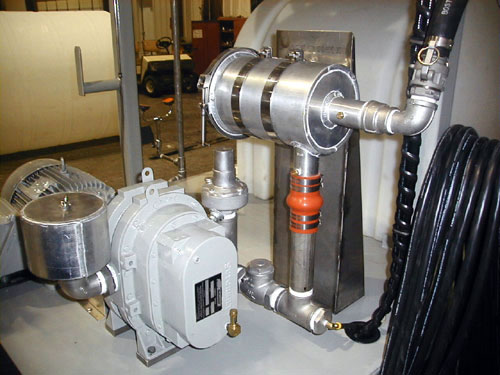

FEATURES:
- 11 GUAGE ALUMINUM CONSTRUCTION FOR GREATED DURABILITY
- 2" DIA. SCH 40 INLET AND OUTLET PIPING WITH TWIN 1/4" TAPS FOR MONITORING PRESSURE ON EITHER SIDE OF FILTER
- EASY, QUICK RELEASE CLAMPING OF END-CAP FOR ELEMENT REMOVAL AND QUALITY INSPECTION
- TOTAL WEIGHT OF 22LBS WITH STAINLESS STEEL MOUNTING BRACKETS
- PRESSURE RATING OF 75PSI
- REPLACEMENT AND FULLY CLEANABLE FILTER ELEMENT FEATURING
FILTER SPECIFICATIONS:
- Replaceable and fully cleanable Filter Element featuring:
- Filter media with MERV9 efficiency rating
- Will handle Air Volumes at 1000 CFM with .05 PSI back pressure.
- Maximum Temperature 375 F
- 304 SS Body with 16 Square Feet of Medium, 90 Pleats
- 10" LG x 6.85" OD x 4.23" ID
- SS perforated metal core
