FEATURES:
- 1" DIA. IWRC
- NEMA 4 CONTROLS W/ FORWARD & REVERSING STARTER
- 15 HP TEFC MOTOR/BRAKE
- JAW CLUTCH TO ALLOW MANUAL PAYOUT OF CABLE
- DELIVERY 3-4 WEEKS
- 220V / 440V THREE PHASE POWER
OPTIONAL EQUIPMENT:

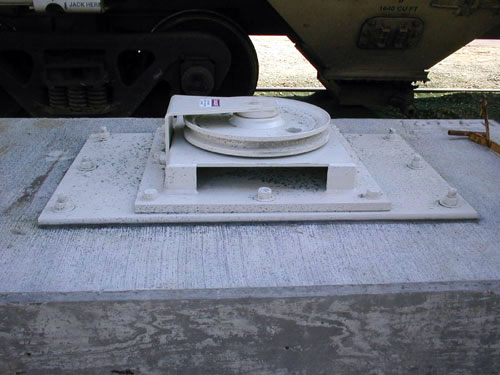

- REVERSING SHEAVE
- SAFETY FENCE
- LONGER WIRE ROPES
- VERTICAL GUIDE ROLLERS
LAYERS |
STORAGE FULL WRAP |
SPEED |
RUNNING PULL |
STARTING PULL |
| #1 | 97 ft. | 22 fpm | 22,000 # | 33,000 # |
| #2 | 107 ft. | 25 fpm | 19,000 # | 29,000 # |
| #3 | 119 ft. | 28 fpm | 17,000 # | 26,000 # |
| #4 | 131 ft. | 31 fpm | 16,000 # | 24,000 # |
| #5 | 143 ft. | 34 fpm | 14,000 # | 22,000 # |
| #6 | 154 ft. | 36 fpm | 13,000 # | 20,000 # |
| #7 | 166 ft. | 39 fpm | 12,000 # | 18,000 # |
| 917 ft=TOTAL WRAP | ||||
