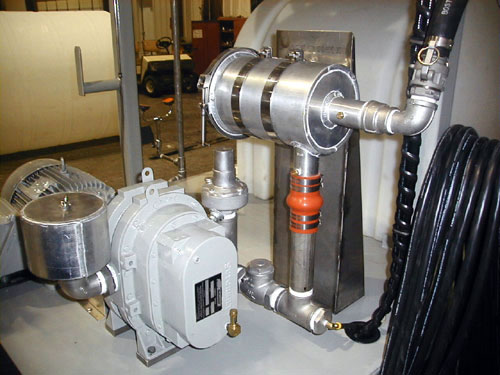

FEATURES:
- 11 GUAGE ALUMINUM CONSTRUCTION FOR GREATED DURABILITY
- 2" DIA. SCH 40 INLET AND OUTLET PIPING WITH TWIN 1/4" TAPS FOR MONITORING PRESSURE ON EITHER SIDE OF FILTER
- EASY, QUICK RELEASE CLAMPING OF END-CAP FOR ELEMENT REMOVAL AND QUALITY INSPECTION
- TOTAL WEIGHT OF 22LBS WITH STAINLESS STEEL MOUNTING BRACKETS
- PRESSURE RATING OF 75PSI
- REPLACEMENT AND FULLY CLEANABLE FILTER ELEMENT FEATURING
FILTER SPECIFICATIONS:
- FDA APPROVED MEDIUM WITH 99% MAXIMUM EFFICIENCY FOR REMOVING ALL PARTICLES AT (1) ONE MICRON AND LARGER
- WILL CAPTURE 100% OF HOT OIL OR OIL MIST FROM BEARING AND/OR BLOWER FAILURE
- WILL HANDLE AIR VOLUMES AT 1000 CFM WITH .05 PSI BACK PRESSURE
- MAXIMUM TEMPERATURE 400 DEG. F
- 304SS BODY WITH 22 SQ FT OF MEDIUM AND 90 PLEATS
