MasterVac - Continuous Flow

← Back Print Page View in English

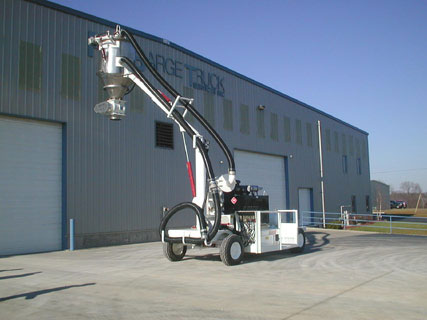

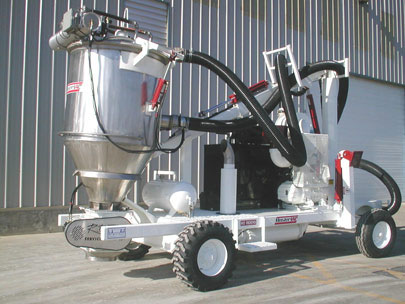

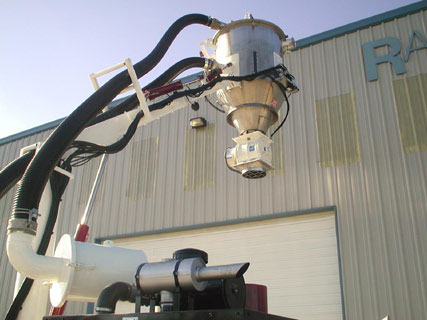

THE CONTINUOUS FLOW MASTER VAC IS BUILT ON A 12,000 LB CHASSIS AND IS TOTALLY SELF-CONTAINED. THE MASTER VAC IS SELF-PROPELLED AT A MAXIMUM SPEED OF 4 MPH. THE FILTER RECEIVER IS RAISED ABOVE THE TRUCK OR RAILCAR VIA HYDRAULICS TO ALLOW TRANSFER TO BEGIN. THE CUMMINS DIESEL ENGINE PROVIDES 140 H.P. TO RUN THE VACUUM PUMP. THE VACUUM CONVEYS VARIOUS COMMODITIES TO THE FILTER RECEIVER AND THROUGH THE ROTARY VALVE INTO THE TRUCK OR RAILCAR. THE CONTINUOUS FLOW MASTER VAC CONVEYS MATERIAL AS THE FILTER CARTRIDGES ARE BEING CLEANED VIA A PULSAIR CLEANING SYSTEM. WITH THIS UNIQUE SYSTEM, THIS ALLOWS THE CONTINUOUS FLOW MASTER VAC TO HANDLE COMMODITIES WITH GREATER CAPACITY, LESS DISPLACED DUST AND A WIDER VARIETY OF DUSTY COMMODITIES, I.E. CEMENT, FLOUR AND FLYASH ALONG WITH MANY OTHERS. IF THE NEED ARISES TO UNLOAD PLASTICS OR OTHER COMMODITIES YOU DO NOT WANT TO RUN THROUGH A ROTARY VALVE, THEN A STANDARD MASTERVAC RECEIVER CAN BE INSTALLED BY REMOVING TWO PINS, AS ALWAYS WE WANT TO MAKE OUR MACHINES AS FLEXIBLE AS POSSIBLE, PLEASE GIVE US A CALL FOR ALL YOUR TRANSFER PROJECTS.

FEATURES:

OPTIONS:

PDF Download Schematic Drawing
