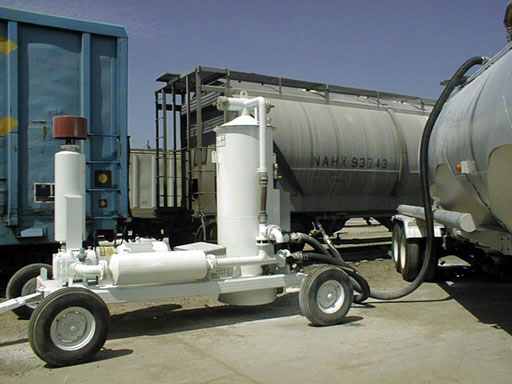

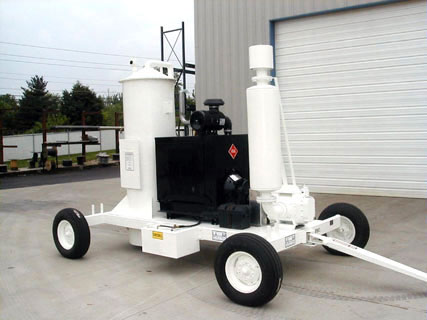

Blowers - Model BP 1400

FEATURES:

• TOWABLE WAGON
• SELF-CLEANING FILTERS BY REVERSE PURGE AIR
• 99.9% FILTER EFFICIENCY @ .3 MICRONS
• (11) 39" TALL X 61 1/4" DIA. PLEATED FILTERS EPTFE MEMBRANE ON 100% SPUNBOND POLYESTER; 34.53 sq/ft PER FILTER = 380 sp/ft TOTAL
• RATED @ 1400 CFM
• 4506 DUROFLOW BLOWER 420CFM @ 15 PSI
• 40 hp 3600 RPM TEFC MOTOR

OPTIONS:

• CUMMINS 4BT DIESEL DRIVE PACKAGE
• SELF PROPELLED
• ELEVATED PLATFORMS
• EXPLOSION PROOF CONTROLS
• 4509 DUROFLOW BLOWER 620 CFM @ 15 PSI
• 60hp 3600 RPM TEFC MOTOR

TYPICAL SERVICE:

• PRESSURE DIFFERENTIAL UNLOADING OF RAILCARS OF TRUCKS. 30 – 50 TPH BASED ON IDEAL CONDITIONS. (15’-0” HOSE DIRECT TO RAILCAR OR TRUCK).

USES:

• CEMENT
• FLY ASH
• KILN DUST
• BLASTING GRIT
• SODA ASH

Download Schematic Drawing
